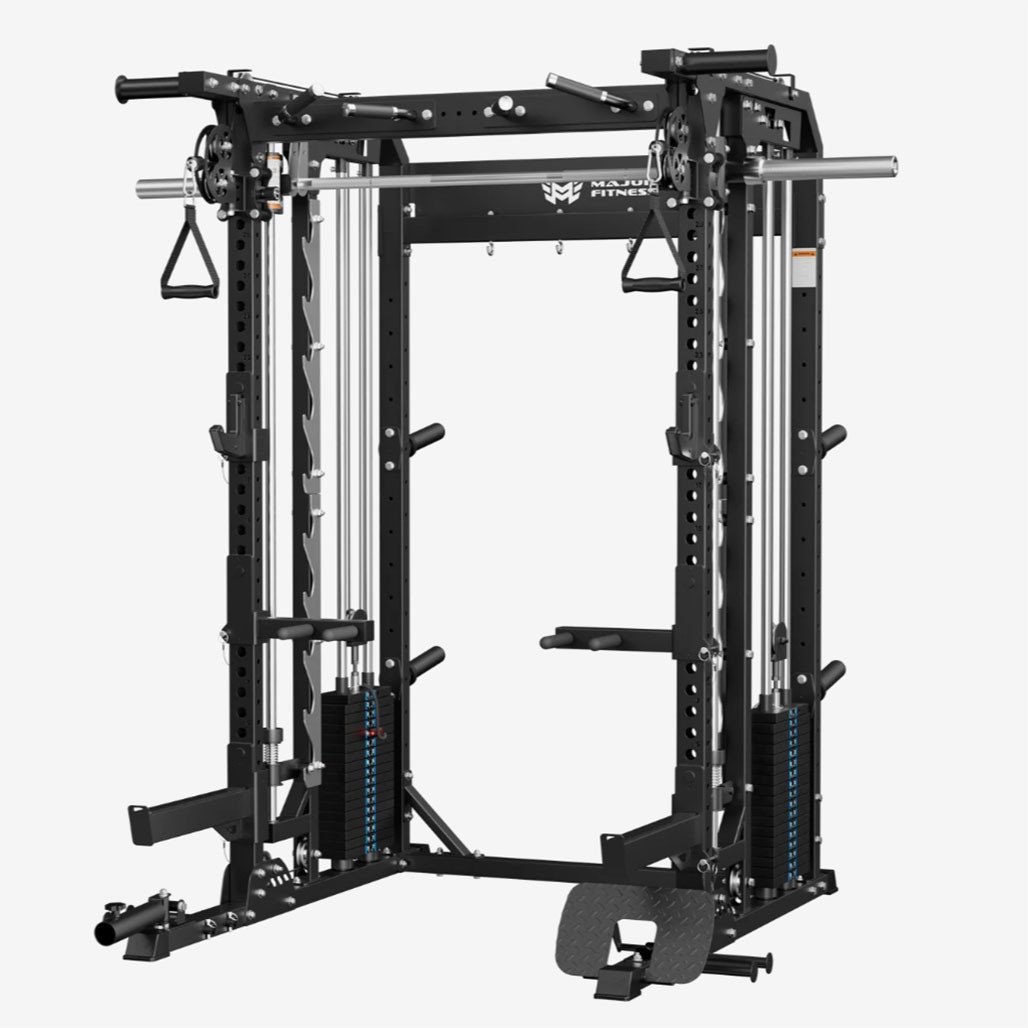

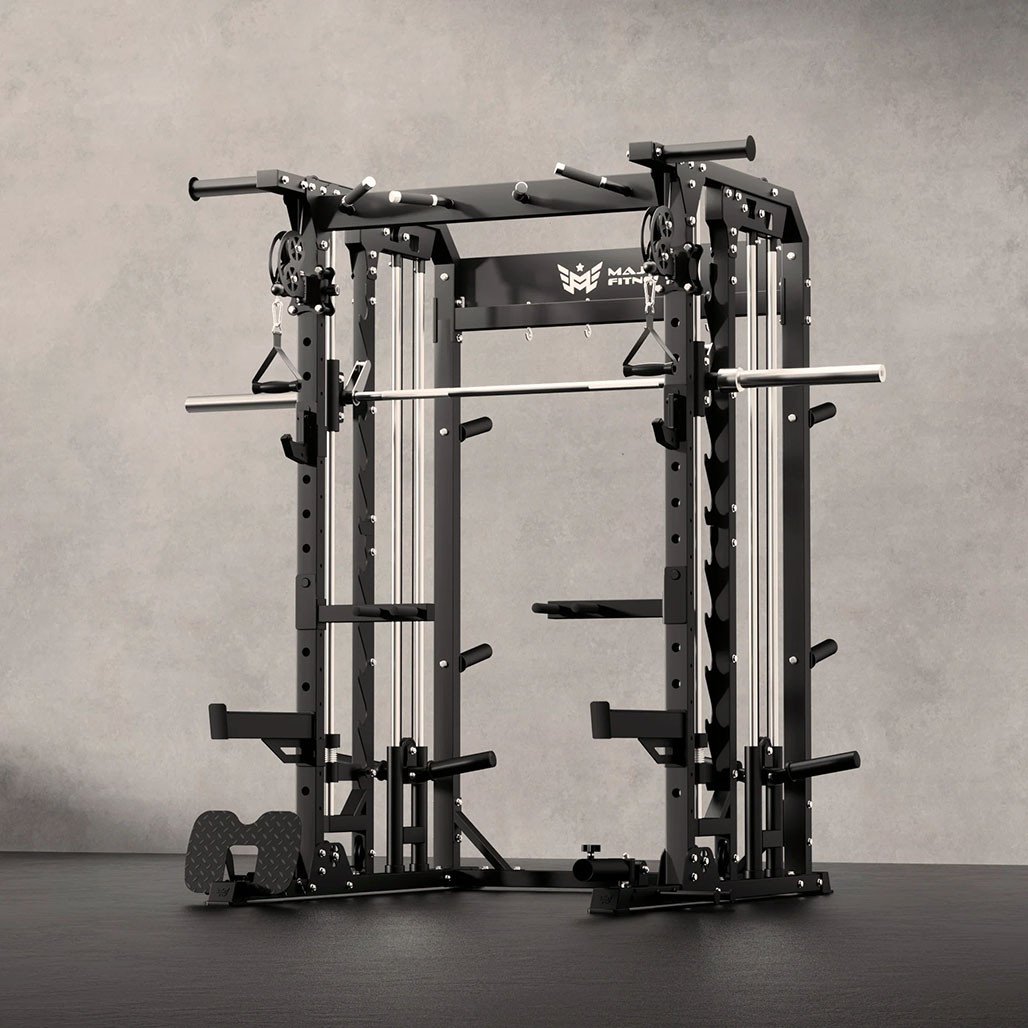

The MAJOR FITNESS B52 Spirit All-In-One Home Gym Smith Machine is a 5-in-1 home gym designed for lifters who refuse to compromise between space and utility. Combining a heavy-duty Smith machine, power rack, and dual weight stacks, it provides a commercial-grade training experience in a residential footprint.

The Ultimate 5-in-1 Training Hub

The B52 Spirit eliminates the need for five separate machines, housing a complete training circuit in one 36.5-square-foot station:

Power Rack: 12-gauge steel uprights with a massive 1,500 lb. capacity for heavy free-weight squats and presses.
Smith Machine: A smooth linear-bearing system with a 400 lb. capacity, perfect for safe solo lifting and targeted hypertrophy.

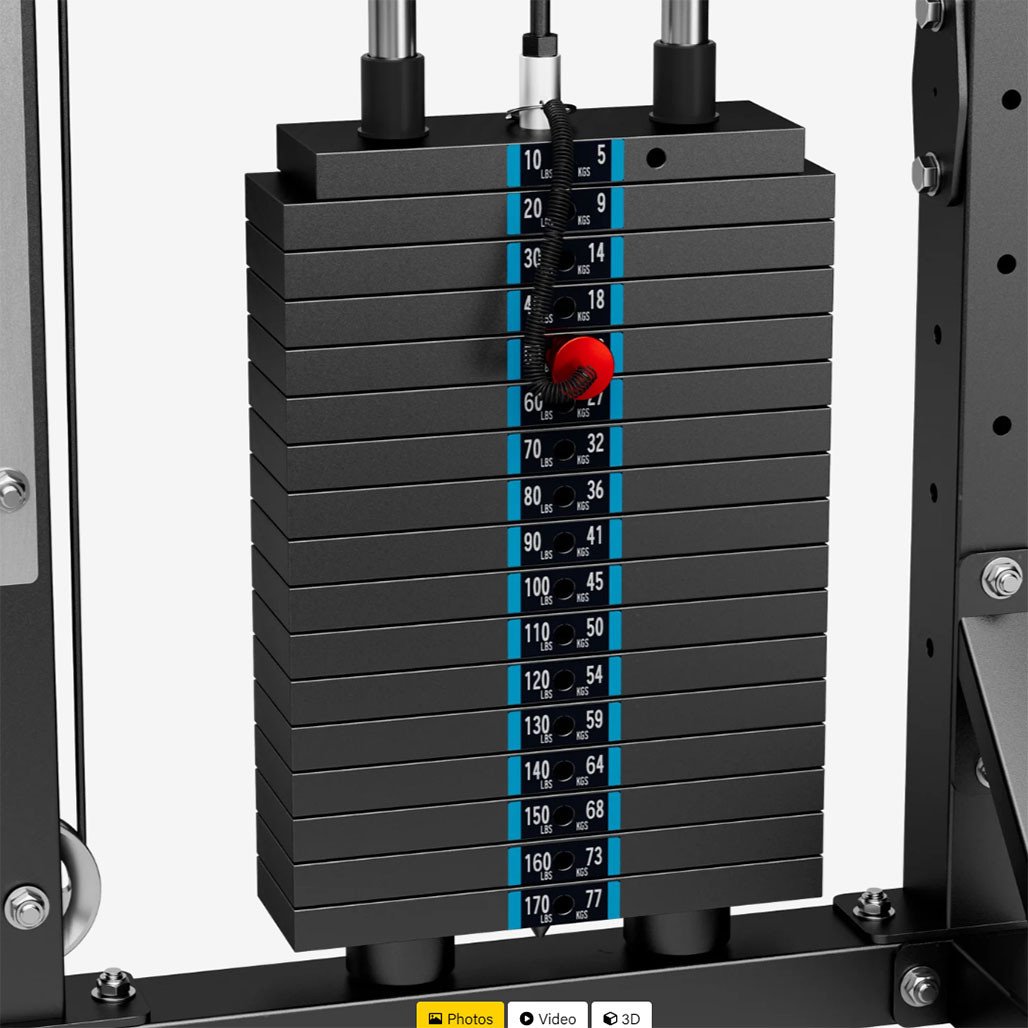

Dual Cable System: Features 170 lb. integrated weight stacks on each side and a 2:1 pulley ratio for fluid functional training and isolation work.
Calisthenics Station: Includes a multi-grip pull-up bar (600 lb capacity) and adjustable dip handles.
Landmine Attachment: Adds 360-degree rotational training for core and explosive power.

Precision Engineering & Safety

Ultra-Smooth Glides: Upgraded aluminum pulleys and commercial-grade nylon-coated cables provide a “frictionless” feel during every rep.
Highly Adjustable: With 31 front and 32 side holes on the 2×3″ uprights, you can dial in the perfect height for every exercise, regardless of your stature.
Built for Safety: Includes reinforced safety arms, J-hooks with protective plastic sleeves, and safety pins to lock every attachment firmly in place.
Organized Workspace: A dedicated Smith Bar storage hook keeps the bar out of the way when you’re using the rack for free-weight movements.

Tech Specs

Finish: Tactical Black
5-in-1 multifunctional smith machine
12-Gauge steel front uprights
Smooth lifting with aluminum pulleys
More holes for more positioning options
Safety pins and plastic sleeves
Easy adjustability weight stacks
170 lbs Weight Stack on Each Side
Rack Weight: 710.9 lbs

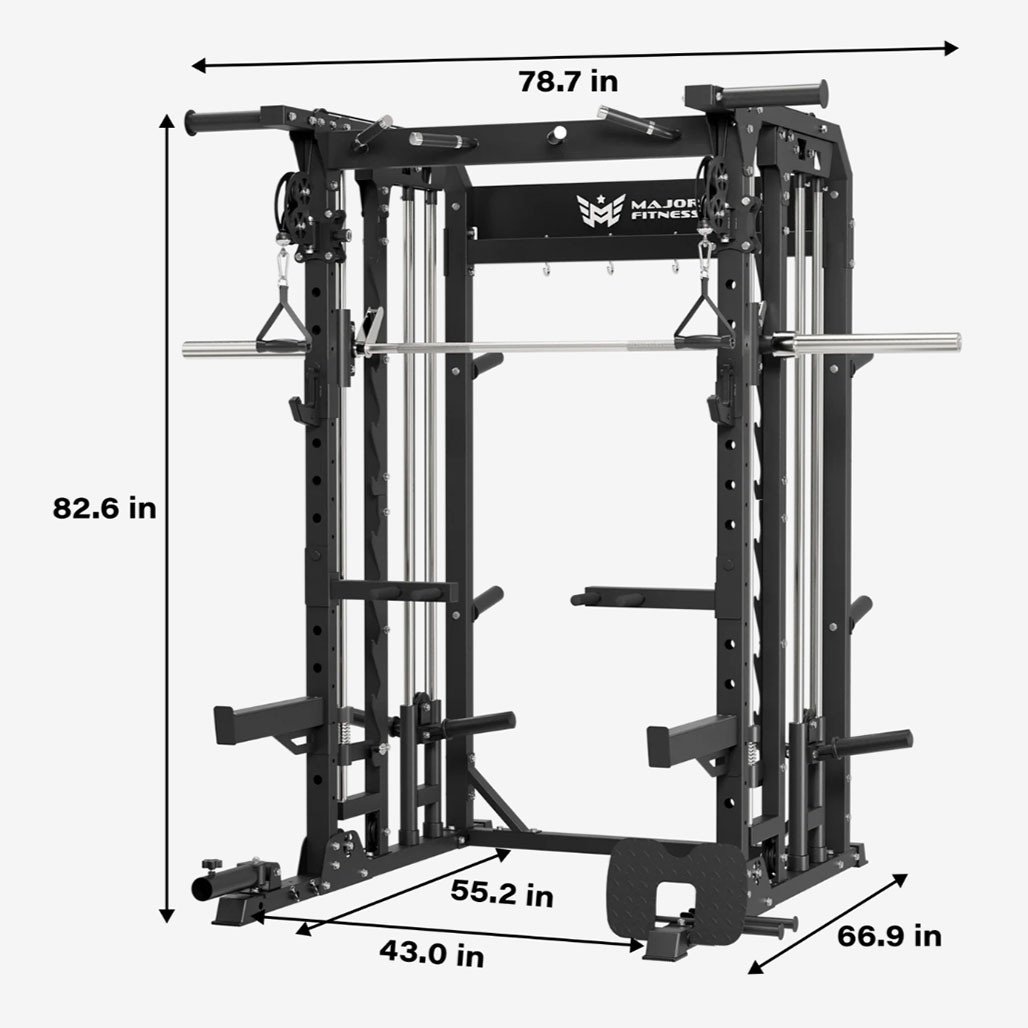

Rack Width: 78.7 ″
Rack Depth: 66.9 ″
Rack Height: 82.6 ″
Inside Depth: 55.2 ″
Inside Width: 43.0 ″
Pulley Material: Aluminum
Adjustable Holes For Uprights: 31
Adjustable Holes For Cable System: 32
Adjustable Holes For Smith System: 11
Cable Pulley Ratio: 2:1
Weight Stack Set Load: 170 lbs each side
Upright Hole Size: 1.0 ″

What are the main differences between the Pro and Standard versions?

The Pro version features heavier 12-guage steel in the front uprights. It also has more holes for the attachments and cable trolley. The pulleys are also second generation aluminum pulleys. The included j-hook, safety arm, and dip bars have 5mm plastic liners and safety pins. For a full list of the in depth feature enhancements be sure to read the feature list included on the product pages.

What training systems are integrated into the B52 Pro?

It integrates five distinct training systems: a power rack, Smith machine, cable pulley system, multi-grip pull-up bar, and a 360° landmine.

Is the B52 Pro suitable for multiple users at the same time?

Yes, the B52 Pro’s premium dual cable pulley system allows up to three people to use it simultaneously. Additionally, the Pro version upgrades the original pulleys to high-quality aluminum pulleys for improved performance.

What is the cable pulley ratio of the B52 Pro?

The B52 Pro features a 2:1 cable pulley ratio. When you place a 50-pound weight, ignoring friction, the force you need to pull is approximately 25 pounds.
